Timber Framing vs Post and Beam Construction
Something that is commonly confused is the difference between timber framing and post and beam construction.
The major difference, really the only difference, is the type of joinery that is used. A timber framed building uses traditional joinery, like mortise and tenon, dovetails, and tongue and fork (to name a few) to form the connections. The mortise and tenon joint is used to make the majority of timber framed connections and has been the basis for timber framed projects since the very beginning.
Traditional Timber Frame Joinery Using Mortise and Tenons with Wood Pegs.
Timber Framed Church Truss Being Installed Using Traditional Joinery
Post and beam construction has a very similar aesthetic, and the joints can look similar, but the stark difference is the connections are simple, sometimes made with plates and bolts. Some post and beam projects are done without the plates. For those projects, the connection is made by lag bolting the timber components together.
Post and Beam Joinery on a Timber Storage Shed

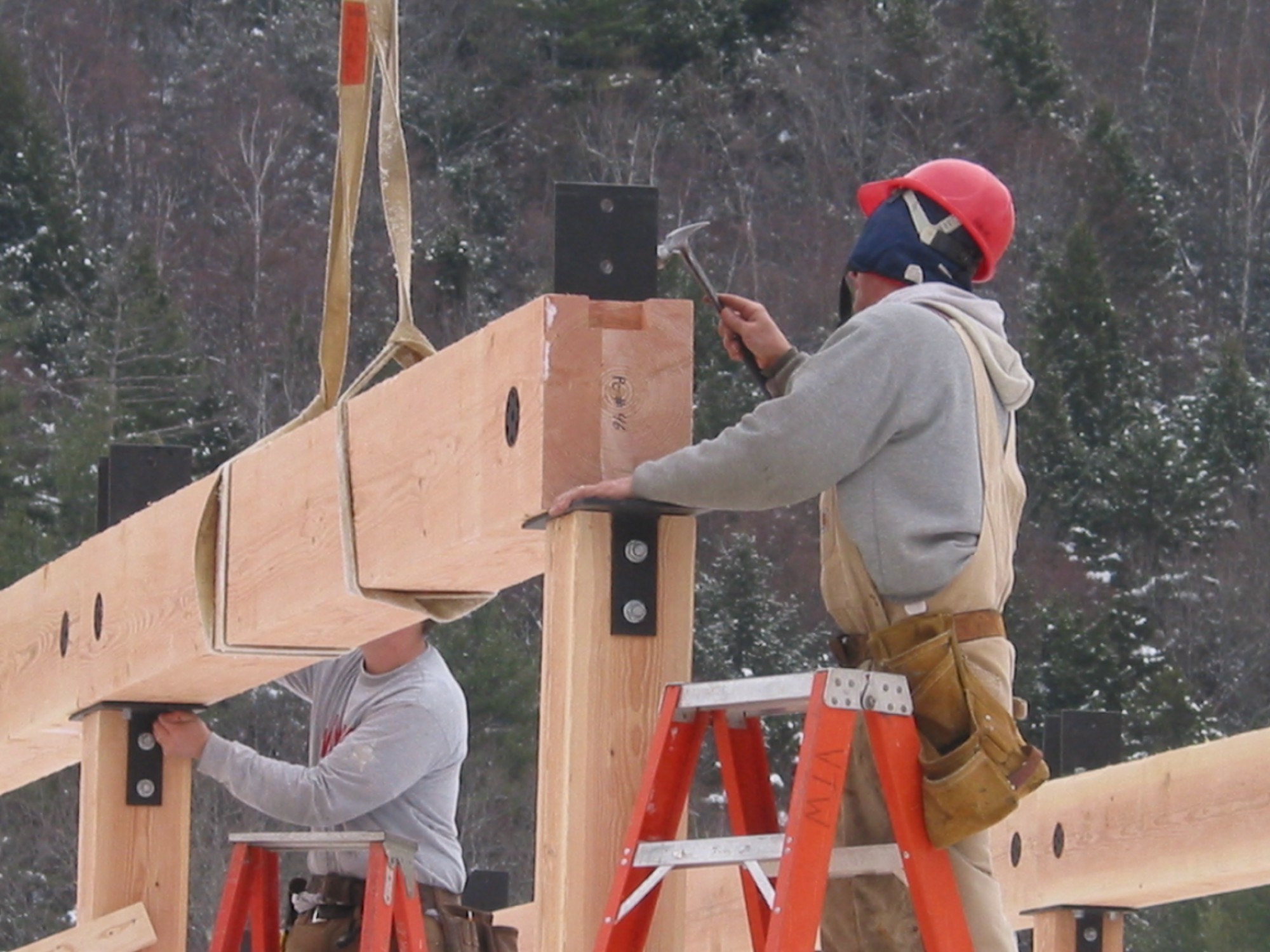

Post and Beam Joinery. The image shows setting heavy beam on posts.
Vermont Timber Works has used traditional joinery from day one. We use it even when the project calls for steel joinery. Although the steel may help the strength of the connection, it is applied over a connection that has already been made with mortises and tenons.
There is no doubt that steel can bring a lot to the table when it comes to the design and overall concept of a frame, especially when someone is trying to marry a rustic look with an industrial look. We often use steel as an aesthetic component of a frame. There is no right or wrong when it comes to the concept & design of your timber frame project. Everyone has different tastes. Just know that traditional joinery will be the backbone, figuratively and literally, when you build a timber frame with Vermont Timber Works.
Flat black steel plates being assembled on a king post truss
As always, thank you for stopping by our blog! If you have any questions about Timber Frames or Post and Beam Construction, we invite you to get in contact, ask an expert, or share your thoughts in the comment section below.
